一、產品運用：
該機廣泛運用于白酒、啤酒、葡萄酒、黃酒、果汁、調味品（醬油/醋/料酒）以及其他類似液體飲料的過濾。

二、主要結構：
燭式硅藻土過濾機由過濾罐、攪拌筒、物料泵、計量泵、管道、閥門等組成。由不銹鋼管、蝶閥及視鏡等組成的過濾網絡與過濾液體接觸處均采用優(yōu)質不銹鋼材料制成。過濾筒內由燭棒組成過濾系統(tǒng)，過濾燭棒由纏繞不銹鋼絲纏繞而成，過濾金屬絲與中心筋條纏繞焊接，牢固不易損壞。攪拌筒由筒體及攪拌裝置組成，物料泵為離心泵，計量泵為隔膜式計量泵。

三、性能優(yōu)點：
該系列燭式過濾機是引進、消化德國生產的纏繞式彈性過濾機技術，結合我國國情生產的多用途的過濾設備，適用于黃酒及各類飲料、調味品等液體介質過濾。該機械密封性好，使用壽命長，能承受高壓，能延長工作時間，能正反沖洗，過濾完畢后可以以回收殘液。過濾介質表面非常光滑，沒有任何殘留的死角。通過非常有效的清洗，將泥狀廢硅藻土排放，排放后在椎體部分無殘留。洗水無壓排放到廢水排放管道。很少易損部分，易維修和保養(yǎng)，非常經濟。

1、 Product application:
This machine is widely used for filtering Baijiu, beer, wine, yellow rice wine, fruit juice, condiments (soy sauce/vinegar/cooking wine) and other similar liquid drinks.

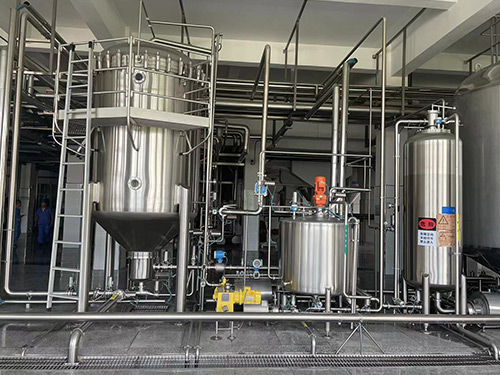

2、 Main structure:The candle type diatomaceous earth filter is composed of a filter tank, a mixing drum, a material pump, a metering pump, pipelines, valves, etc. The filter network composed of stainless steel pipes, butterfly valves, and sight glasses is made of high-quality stainless steel material at the contact point with the filtered liquid. The filtering system inside the filter cylinder is composed of candle rods, which are wrapped with stainless steel wire. The filtering metal wire is welded to the central rib, making it firm and not easily damaged. The mixing drum consists of a drum body and a mixing device. The material pump is a centrifugal pump, and the metering pump is a diaphragm metering pump.

3、 Performance advantages:This series of candle filter machines is a multi-purpose filtration equipment produced by introducing and digesting the winding elastic filter technology produced in Germany, combined with China's national conditions. It is suitable for filtering liquid media such as yellow wine, various beverages, seasonings, etc. This mechanical seal has good sealing performance, long service life, can withstand high pressure, can extend working time, can be flushed forward and backward, and can recover residual liquid after filtration. The surface of the filter medium is very smooth, without any residual dead corners. By very effective cleaning, the mud like waste diatomaceous earth is discharged, and there is no residue in the vertebral body after discharge. Wash water is discharged into the wastewater discharge pipeline without pressure. Very few vulnerable parts, easy to repair and maintain, very economical.
